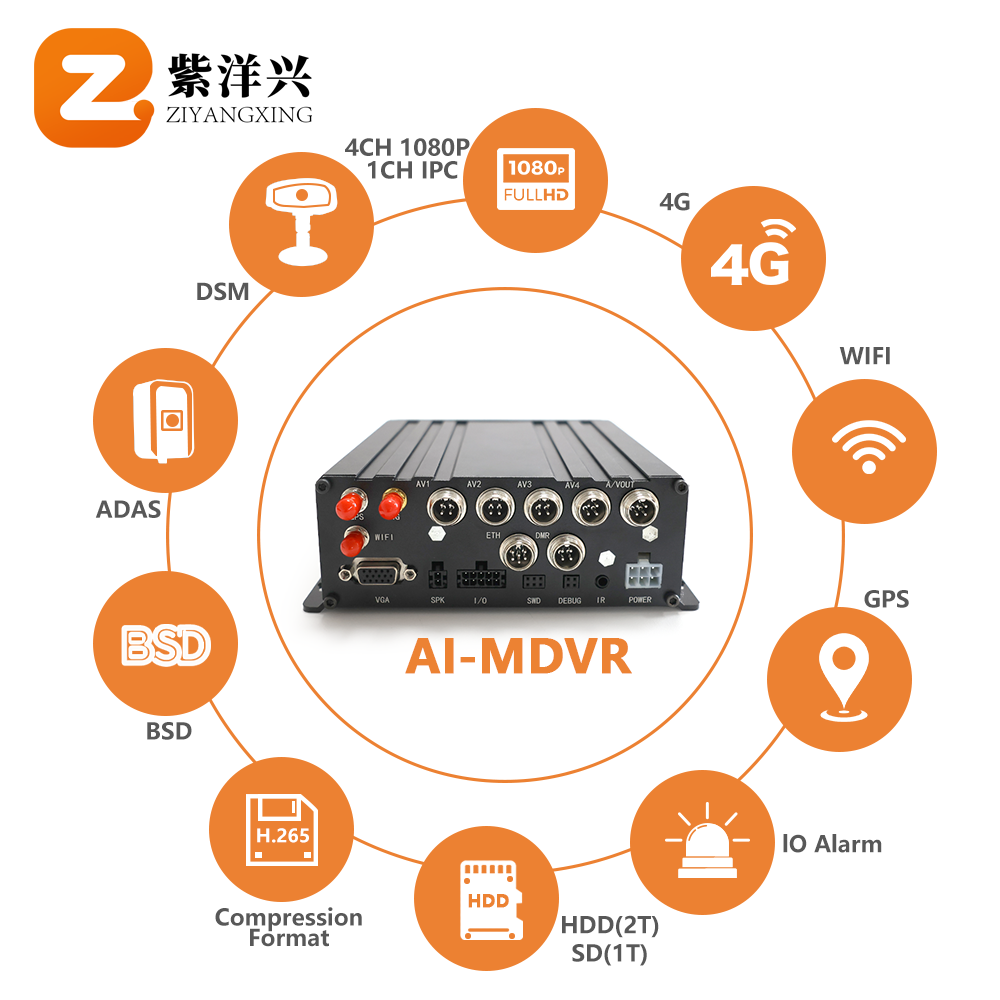

ZY-M62 Vehicle Hard Disk Recorder Mobile DVR AI MDVR

1.Supports 4 channels of 1080P and 1 channel of IPC input
2. Adopts H.265 compression encoding
3.3 types of output signals: VGA, AHD, and CVBS
4.Single - AI chip design and integrates intelligent warning systems such as ADAS, DMS, and BSD
5.Built - in G - sensor, which can collect vehicle acceleration information
6. Supports 4G, BD/GPS, and WIFI
7.Hard disk（Max 2T）and an SD card (MAX 1T)
8.Supports debugging and maintenance via OPS App

Request a Quote

product details

(Fully Integrated/Standard/ H.265/4+1 Channel Video Inputs)

Product Introduction

This hard disk recorder utilizes a new generation of dedicated high-speed audio and video processors and embedded operating systems, combined with H.264/H.265 video compression, satellite positioning, GSensor, CAN, 3G/4G networks, and other technologies. It can achieve audio and video recording, wireless data uploading, providing rich driving data and audiovisual images for vehicle operation companies and traffic management departments, facilitating more precise management of vehicles and drivers.

description2

Product Features

- Compliant with the "Technical Requirements for Satellite Positioning Systems for Road Transport Vehicle Video Terminals" (JT/T 1076-2016) standard;

- Compliant with the "Video Communication Protocol for Satellite Positioning Systems for Road Transport Vehicles" (JT/T 1078-2016) standard;

- Compliant with the "Communication Protocol and Data Format for Onboard Terminals of Satellite Systems for Road Transport Vehicles" (JT/T 808-2019) standard;

- Supports 8-channel analog audio and video signal inputs, and 1-channel IPC signal input. The analog channel supports up to 8 channels of 1080P encoding, and the digital channel supports up to 1080P encoding. Utilizes H.265 encoding compression technology;

- Supports a maximum of 1 2.5-inch hard disk with a maximum capacity of 2T and 1 SD/SDHC cards, with each SD card supporting up to 512G;

- Built-in full Netcom 4G module, supporting wireless communication networks based on LTE-TDD/LTE-FDD/WCDMA/TD-SCDMA/EVDO/CDMA/GSM; supports global frequency bands;

- Built-in high-sensitivity Beidou and GPS dual-mode positioning modules;

- Built-in G-sensor, capable of collecting vehicle acceleration information, supporting CAN bus acquisition, overspeed alarm, etc.;

- Supports wide power input (DC +8 ~ +36V), meeting the electrical characteristics requirements of vehicles;

- Equipped with power-off protection function, ensuring the integrity of critical data even in sudden power-off situations;

- Optional built-in lithium battery to maintain position reporting in case of power failure;

- Optional built-in ADAS/DSM/BSD; capable of fatigue detection alarm, driver identification, yawning, smoking, making phone calls, not wearing seat belts, driver looking around, lane departure warning, collision warning, blind spot detection, etc.;

- Rich expansion interfaces, supporting peripherals such as intelligent display terminals, printers, oil rods, forward/reverse rotation, temperature and humidity, fireproof storage boxes, etc.

description2

Technical Specifications

Model	ZY-M61
Video Compression Standard	H.265/H.264
Audio Compression Standard	G.711 ALaw
Resolution	1080P/720P/4CIF/CIF 1080P

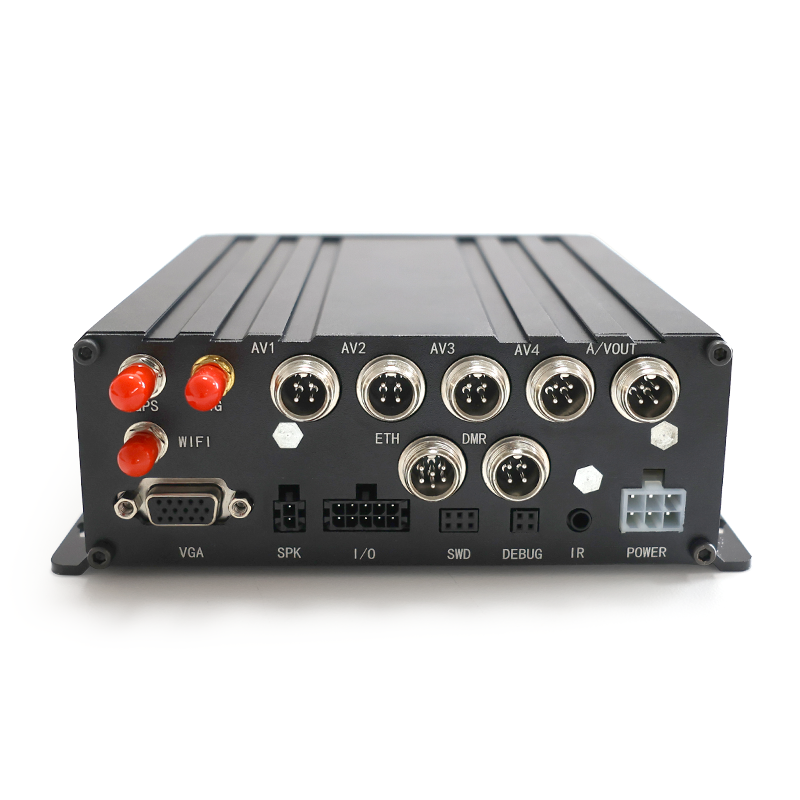

Video Input/Output	- Video Input: 4-channel analog/AHD HD, 1-channel digital HD - Video Output: 1-channel CVBS, PAL format 704576, NTSC format 704480, 1-channel VGA
Audio Input/Output:	- Audio Input: 4-channel, 3Vp-p linear level, 1K ohm - Audio Output: 1-channel, 2Vp-p linear level, 600 ohm
Wireless Network	Built-in 4G full Netcom module, supporting wireless communication networks based on LTE-TDD/LTE-FDD/WCDMA/TD-SCDMA/EVDO/CDMA/GSM, supporting overseas frequency bands
Positioning Module	Supports Beidou/GPS
Antenna Interface	SMA interface
ADAS&DMS&BSD	Optional built-in
Storage Media	Supports 1 2.5-inch hard disk and 1 SD/SDHC card storage
Driving Information Collection	- Input: 6 channels of high-level triggering, 2 channels of low-level triggering, 2 channels of analog signal collection, 1 channel of pulse collection - Output: 2 channels, 12V/5V output
Ethernet Port	1
USB Interface	1
Serial Data Interface	2 RS232 interfaces, 1 485 interface, 1 CAN
Operation Method	Infrared remote control, operation and maintenance treasure
Device Power Consumption	<10W
Operating Temperature/Humidity	-30℃ - ＋70℃
Operating Voltage	DC8V-36V
Dimensions	Main body (LengthWidthHeight): 191.5157.855mm
Weight
Voice Intercom	1 channel, supporting two-way intercom/clustering intercom - Input: 1.0Vp-p linear level, 1K ohm - Output: 2.0Vp-p linear level, 600 ohm
