ZY-W732 7-Inch Wireless Touchscreen Rear View Camera System

7-Inch Wireless Touchscreen Rear View Camera System - 720P HD, 450M Range, Solar Powered, IP68 Waterproof, Supports 1-4 Cameras for Trucks/RVs (12-35V)
1. 7-inch IPS LCD Display (1024 x 600) with touch button
2. 500cd/m2 Luminance
3. DC12-35V
4. 2.4G  wireless transmission, 22DB antenna
5. Transmission distance up to  450M in the open area
6. Night vision function with 850 infrared LED.
7. IP68 Waterproof
8. 720P resolution with 140 Degree Lens Angle.
9. Type-C female connector, 5V DC charging, Solar Charging Max0.75W）, Short circuit, and over-voltage protection.
10. Power display indicator light, the light will flash when charging.
11. Built-in battery(9600mAh)and solar panel,Minimum working time of 15hours with full power, maximum working time of 48 hours.
12. Strong Magnet anti-skid function.
13. Low-power consumption. When the monitor is turned off, the camera enters sleep mode. When the monitor is turned on again, the camera will turn on automatically
14. Working temperature:-20-70℃
15. Storage temperature:-30-80℃

    Request a Quote
    product details
    product description

    Products Features

    1. 7" Touchscreen IPS Display - 1024×600 resolution with 500cd/m² brightness
    2.  Long-Range Wireless (450M) - 22DB antenna with adjustable 300-450M transmission
    3. Multi-Camera Support - Connect up to 4 cameras simultaneously
    4. Solar + High-Capacity Battery - 9600mAh battery with 0.75W solar charging (15-48hrs runtime)
    5. Smart Power Management - Auto sleep/wake function with low/high power modes
    6. IP68 All-Weather Proof - Withstands extreme temperatures (-20°C~70°C)
    7. 720P HD Night Vision - 140° wide-angle lens with 850nm IR LEDs
    8. Easy Installation - Strong magnetic mount and touch button controls


    Description

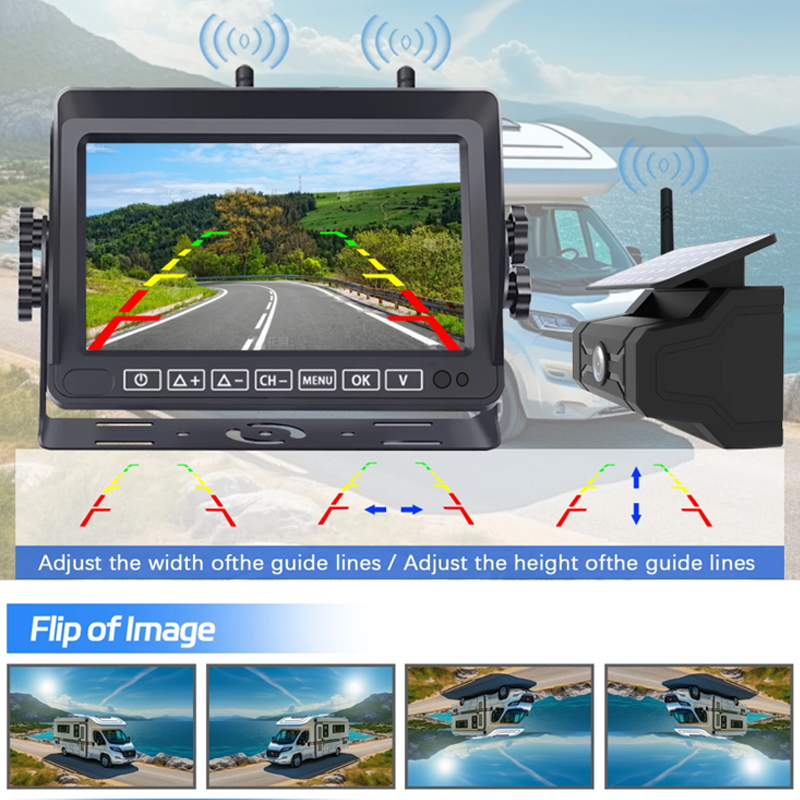

    1. Advanced Touchscreen Display
    7-inch IPS LCD with 1024×600 resolution and 500cd/m² brightness features intuitive touch buttons for easy operation, even while driving.
    2. Superior Wireless Performance
    Powerful 22DB antenna delivers 450M max transmission range (adjustable to 300-350M in low-power mode) with stable 2.4G signal.
    3. Flexible Camera Configuration
    Supports connection with 1-4 cameras (front/rear/side views) for complete vehicle monitoring - ideal for trucks with trailers.

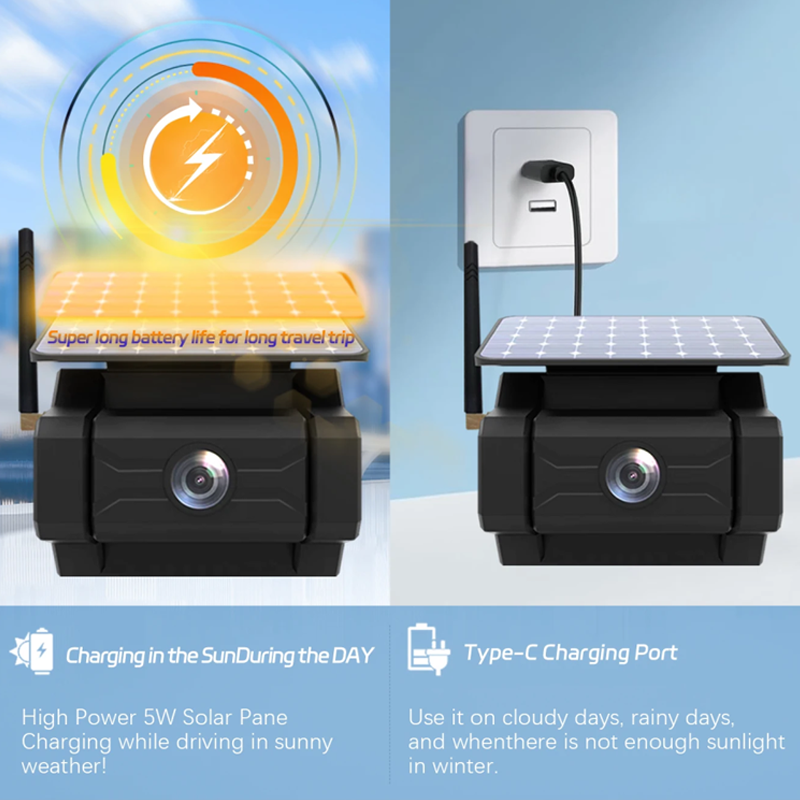

    4. Solar-Powered Reliability
    9600mAh built-in battery provides 15-48 hours operation, supplemented by 0.75W solar panel for continuous charging.
    5. Smart Energy Management
    System automatically enters low-power sleep mode when not in use, with instant wake-up when activated.

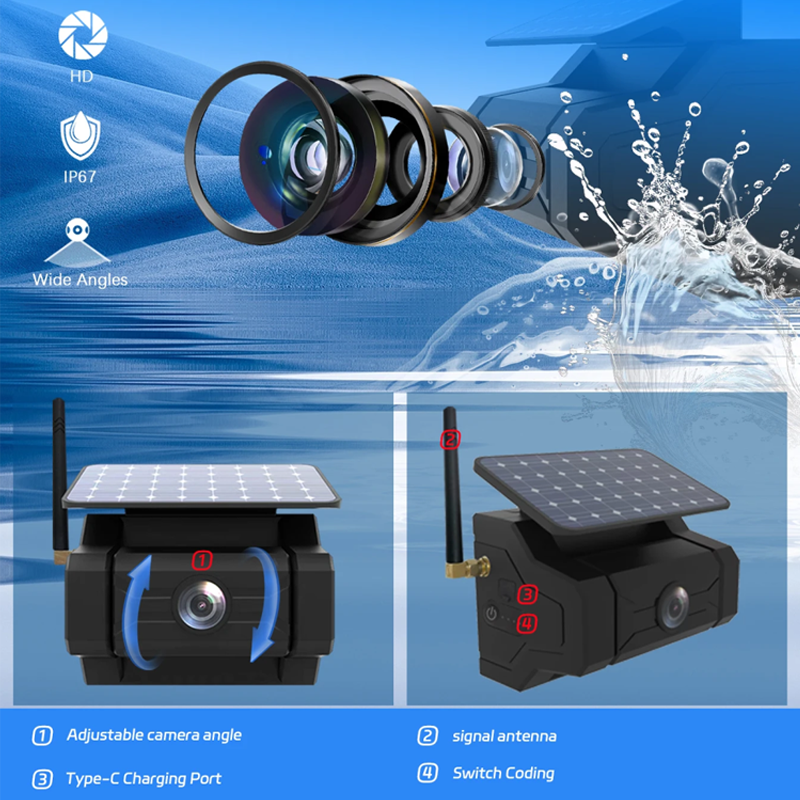

    6. Professional-Grade Durability
    IP68 waterproof rating ensures reliable performance in all weather conditions, from -20°C to 70°C.
    7. Enhanced Night Visibility
    720P HD camera with 140° wide-angle lens and 850nm infrared LEDs provides clear night vision.
    8. Commercial Vehicle Ready
    12-35V wide voltage input compatible with all vehicles, featuring strong magnetic mount for secure installation.

    description2

    Accessory List

    7--inch wireless monitor * 1
    Solar camera * 1
    U type bracket * 1
    3M adhesive paper*1
    3m power cable * 1
    Type-c cable * 1
    Cigarette lighter  * 1
    Antenna * 2
    Manual * 1

    description2

    Packing Details

    Dimension：280*200*90mm
    Gross Weight：1600g

    description2

    Lead Time

    1). 3-7days, Sample orders
    2). 7-10days, Orders with stock materials
    3). 10-20days, Bulk orders and OEM orders
    4). 1-3 months, ODM orders

    description2

    MOQ

    1). No MOQ for sample or trial order
    2).100pcs/model, for bulk order, standard products with neutral packing
    3). 200pcs/model, Print Logo on products, Single Color
    4). 100pcs/model, integrate Logo into Monitor Display Home Page.
    5). 1000pcs/design, for customized packing
    6). 1000-5000pcs/model, for ODM project

    Payment Term and Method

    1). Sample and trial order: 100% in advance
    2). Bulk and OEM orders: 30% deposit, 70% before shipment
    3). ODM orders: 50% deposit, 50% before shipment
    Payment  Method: TT bank transfer or Alibaba Pay

    Factory Supports

    OEM， ODM， LOGO-Customizable.
    Factories typically provide customers with support in the following areas:
    1. Customized services: Customize product specifications, design and packaging according to customer needs to meet customers' special needs.
    2. Technical support: Provide product technical parameters, operating instructions, technical training and other support to help customers better understand and use the product.
    3. After-sales service: Provide product warranty period and after-sales service policy, including repair, replacement and return services, to ensure that customers have complete after-sales protection after purchase.
    4. Supply chain support: Provide product supply cycles and logistics arrangements to ensure that products can be delivered to customers on time.
    5. Market support: Provide marketing materials, promotional activity support, etc. to help customers promote product sales.

    description2

    Patents & Certificate

    ● IS09001:2015、IATF16949:2016、E-Mark、CE、ROHS、SGS、RED.

    description2

    QC Control

    ● QC、IQC、IPQC、QA、FQC、OQC

    description2

    Solutions

    ● Fire Service Commanding Car, Van, Tanker, Liquified Gas Taner, Beverage Tanker, Loading Machine, Scraper type Loading Machine, Tower Crane, Truck Crane，Truck, Van,Cargo Truck,Box Truck,Dump Truck,Excavator Truck,Mixer Truck,Tractor Truck,Flatbed Truck,Tanker Truck,Crane Truck,Sweeper Truck,Fire Truck,Ambulance,Compactor Truck,Tank Truck,Garbage Truck,Refrigerated Truck,Trailer,Alloy Tank Truck,Explosive Truck,Cleaning Truck,Sand Truck,Cold Chain Truck,Stake Truck,Explosion-proof Truck,Sewage Suction Truck,Flat Truck,Vertical Truck,Lu Truck,Refrigerated Trailer,Concrete Pump Truck,Gasoline Water Mix,Tractor,Seeder,Combine Harvester,Spraye,Trailer Sprayer,Agricultural Transporter,Soil Cultivation Vehicle,Feed Mixer Wagon,Trailer Garbage Truck,Drip Irrigation Machine.

    description2

    Shipping & Production

    Shipping:  Sea、Container、FEDEX、DHL、UPS、SF、Alibaba Logistic
    Production:
    Sample: 1-5days
    100-500pcs: 5-15days
    500-1000pcs: 7-20days
    1-5Kpcs: 12-30days
    5-10Kpcs: 15-30days

    description2

    Product Video

    description2
